HOW TO USE SHORTING IN PROJECT IN ZUKEN E3 SERIES

What is the shorting

Shorting is the property of sheet which use to renumbering the sheet of project. After insertion of all the sheet sometimes it is required to change the name and number of the sheets we can do that by selecting a sheet on the project window and after selecting press F2 to rename the number or name of the sheet.

Shorting "wiring" "f1"

How to use shorting

We have to sort the sheets as per the number then we have to select the project name (initially Untitled) and right click on it and go to tree control property then click the option SORT it will be sorted according to the number of the sheets.

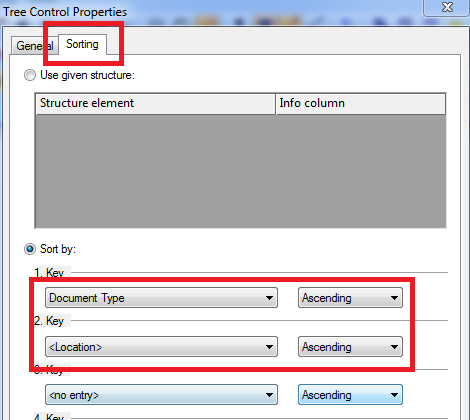

Setting of shorting

Sort by

5 possible sorting criteria can be defined. The drop-down lists contain all attributes available in the database. These can be sorted Ascendingly or Descendingly.

1. Key
2. Key
3. Key
4. Key
5. Key
